UL 1015/1230/1032
RoHS Compliant
UL 1015 Applications:
- UL 1015 may be used for the internal wiring of appliances where exposed to oil at a temperature not exceeding 60°C or 80°C.
UL 1015 Construction:
- Conductor: Stranded (STR) or Solid (SOL); Tinned Copper (TC) or Bare Copper (BC)
- Insulation: Polyvinylchloride (PVC), Nominal Insulation Thickness: 0.031"
UL 1015 1015 Ratings:
- UL Style 1015 600V 105°C
- UL Style 1032 1000V 90°C
- UL Style 1230 600V 105°C Dry; 60°C Wet
- CSA Type TEW 600V 105°C
- Passes UL VW-1 Flame Test
- Marine approvals for 10 AWG - 16 AWG: UL Standard 1426, BC-5W2
SPEC SHEET UL 1015/1032/1230/TEW
Color Code Chart
| Black: 0 |
Violet: 7 |
| Brown: 1 |
Gray: 8 |
| Red: 2 |
White: 9 |
| Orange: 3 |
Tan: 10 |
| Yellow: 4 |
Pink: 11 |
| Green: 5 |
Light Blue: 12 |
| Blue: 6 |
Light Green: 14 |

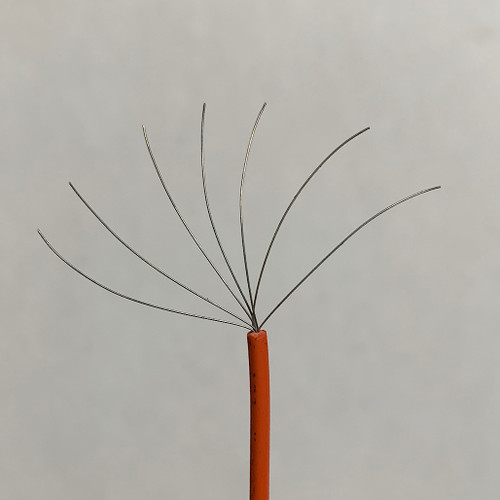

Anaheim Wire Part Number: Stranded
HUW-1015-AWG-COLOR
Anaheim Wire Part Number: Solid
HUW-1015-AWG-SOL-COLOR-TC (Tin Copper)
HUW-1015-AWG-SOL-COLOR-BC (Bare Copper)
For questions and orders call us at 1-800-439-0549
